42 mm Grid-Compatible Organiser Set, 3D Printed

What does it look like in use?

Renders are computer images of our own design, made from the same model we print. Photos are of our own first prints.

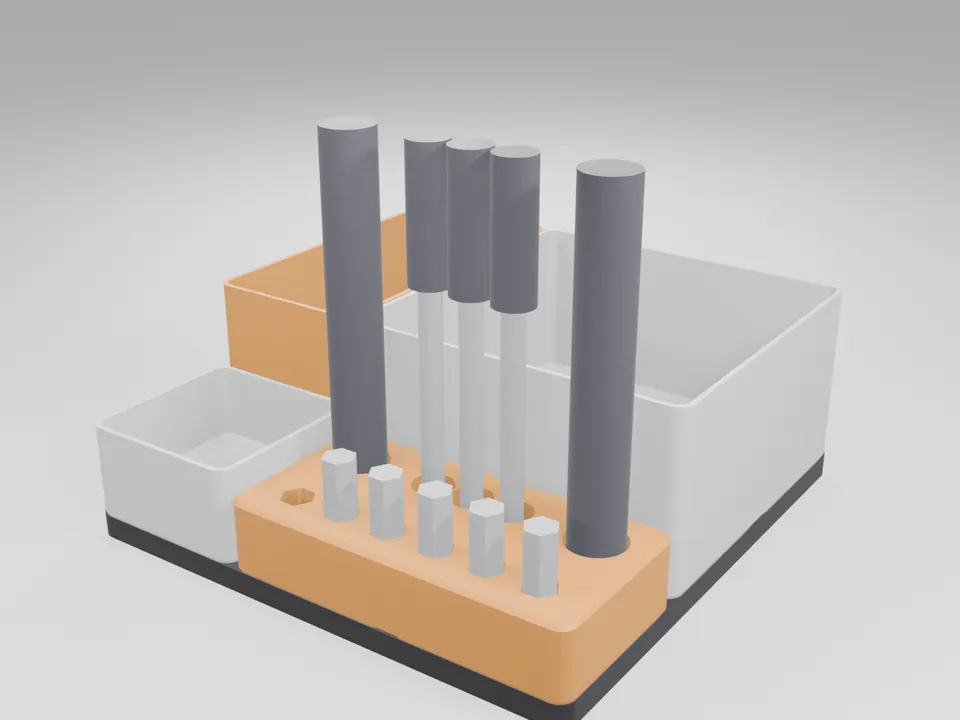

3D printed organiser set holding grey screwdriver handles and hex bits in the orange tool block — **In use (render)**Render: the set in use with stand-in drivers and bits (not supplied).

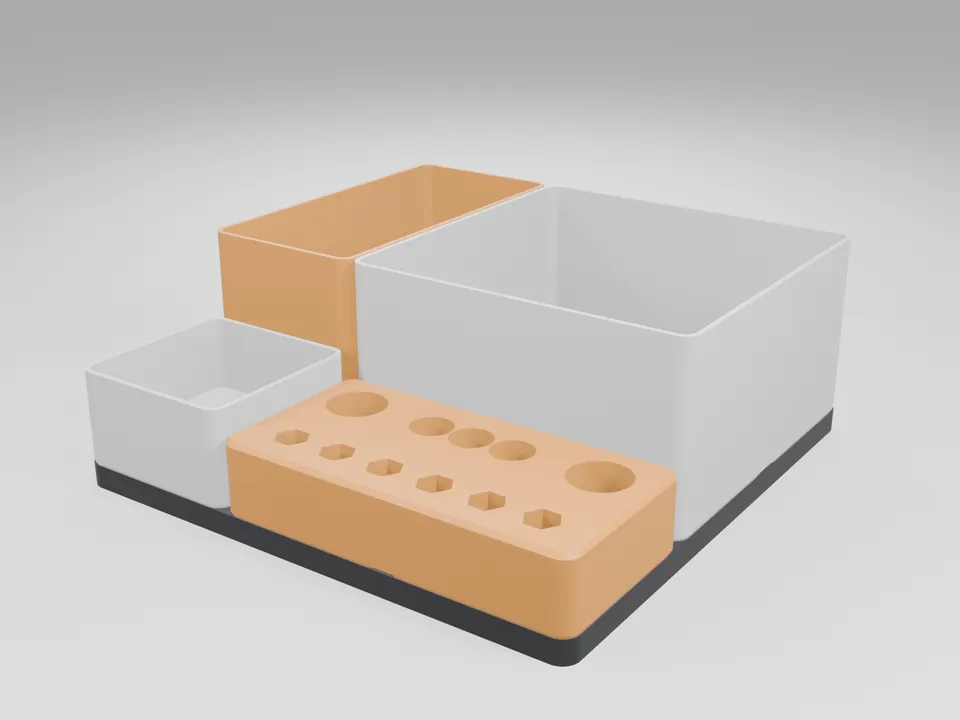

3D printed organiser set on a black 3x3 baseplate: white bins, an orange bin and an orange tool block with hex-bit pockets — **Studio render**Studio render of the starter set on the 3x3 baseplate.

Real photos

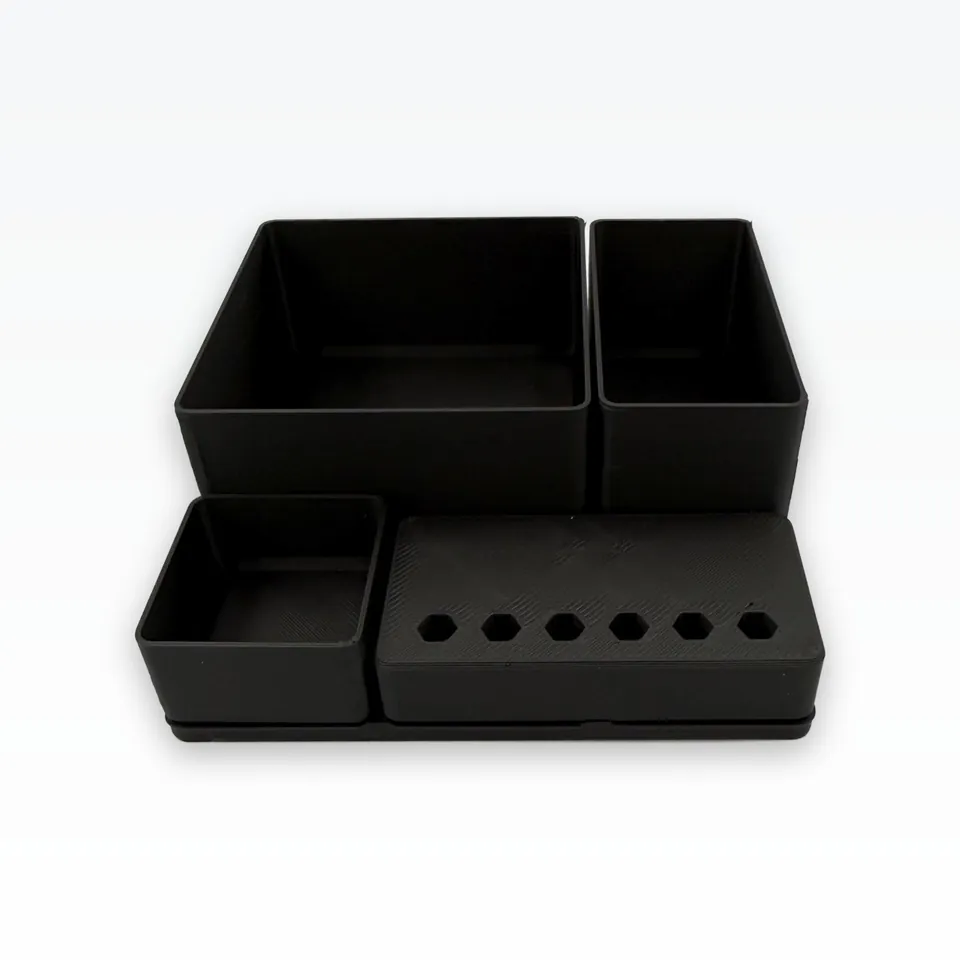

Black 3D printed 42 mm grid organiser set: two tall bins, a small bin and a tool block on a baseplate — Photo: our first print of the set, in black matte PLA.

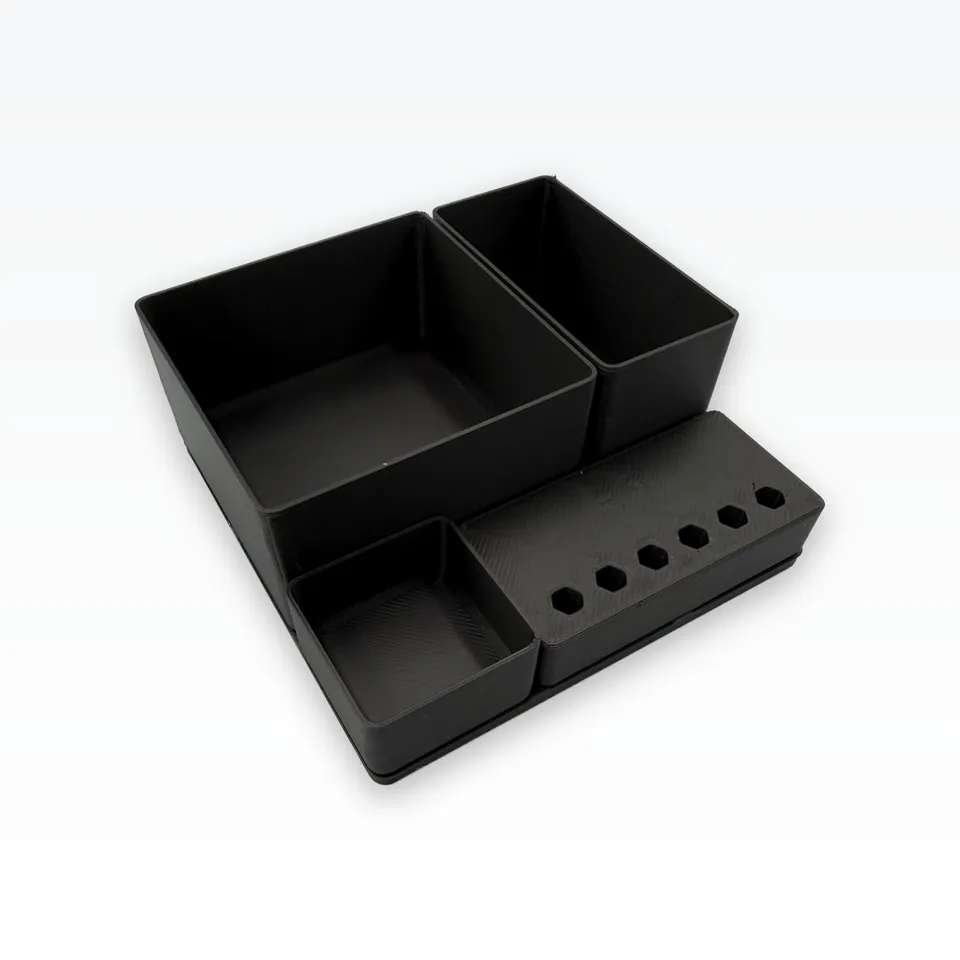

Black 3D printed organiser bins and tool block seen from above at an angle — Photo: the set from above.

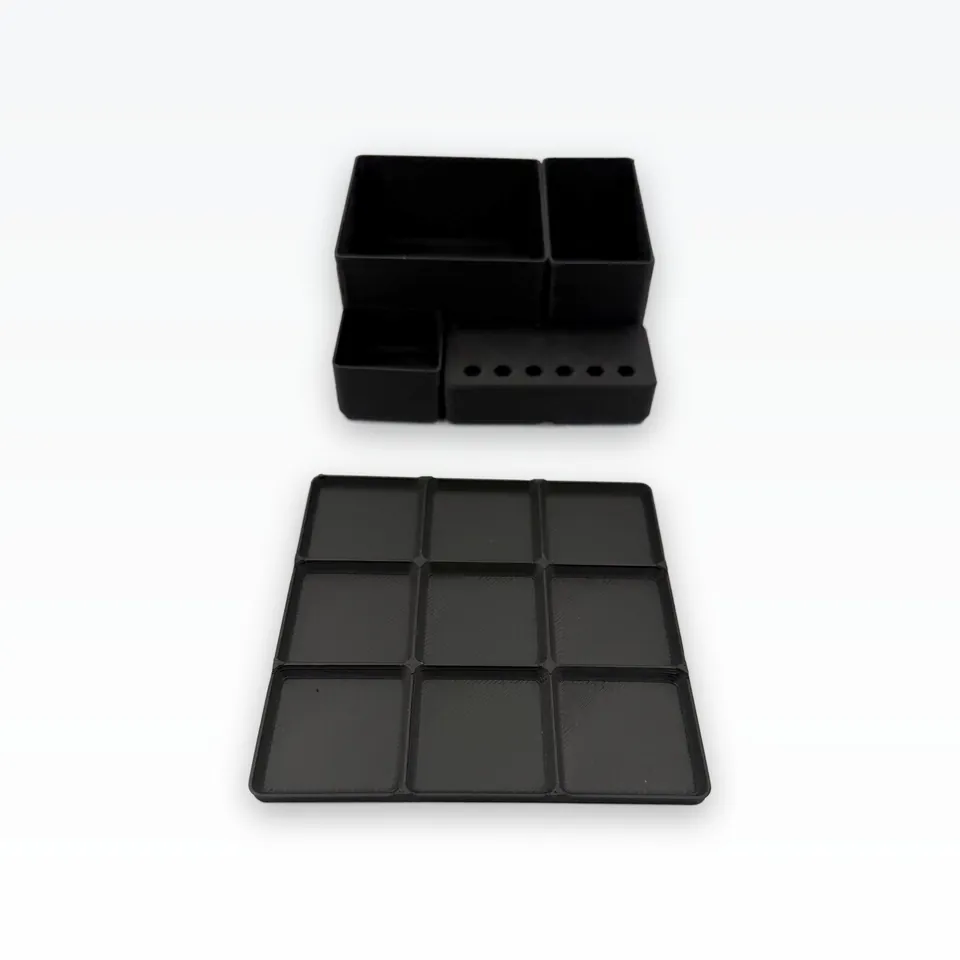

Black 3D printed 3x3 baseplate with nine square pockets next to the assembled bins — Photo: the 3x3 baseplate beside the bins.

Underside of black 3D printed bins showing the chamfered 42 mm grid feet — Photo: the stacking feet underneath.

Specifications: material, size and what it fits

Spec	Detail
Material	PETG for the workshop, or PLA for desk use. Any colour from our range
3x3 baseplate	126 x 126 x 5.55 mm, takes any 42 mm grid bin
Bin 1x1	41.5 x 41.5 x 26.6 mm (3 height units)
Bin 1x2	41.5 x 83.5 x 47.6 mm (6 units)
Bin 2x2	83.5 x 83.5 x 47.6 mm (6 units)
Tool block 2x1	83.5 x 41.5 x 21 mm: six 1/4-inch hex-bit pockets, three 9.5 mm and two 13.5 mm pockets
Fits	Any 42 mm grid baseplate or bin made to the open specification (42 x 42 mm grid, 7 mm height unit). Bins stack on each other
Hardware	None needed. No magnets are fitted in this version

How much does it cost?

Guide prices for printed parts, in Australian dollars. Shipping is extra; we confirm the final price, including any business minimum, before printing. Bulk and custom sizes are quoted per job.

Option	From
Bin 1x1	A$5.95
Bin 1x2	A$9.95
3x3 baseplate	A$12.95
Tool block 2x1	A$12.95
Bin 2x2	A$14.95
Starter set: baseplate + 3 bins + tool block	A$39.95

Who it's for

Home garages and workshops, hobby desks (paint, electronics, RC) and small workshops that want sizes printed to order.

Get a quote →Bulk or custom enquiry

Safety & use

Use. For storage only. The bins and tool block hold small items such as bits and screws: keep them away from young children.

Damage caused by misuse, heat or modification is not covered.

This doesn't affect your rights under the Australian Consumer Law.

FAQ

Common questions

Will these bins fit my existing 42 mm grid baseplate?

Yes. The feet follow the open 42 mm grid specification (42 x 42 mm cells, 41.5 mm bin footprint, 7 mm height units), so our bins drop into any 42 mm grid baseplate and our baseplate takes any 42 mm grid bin. Prints from other makers vary a little.

Do the bins stack?

Yes. The foot of each bin seats in the lip of the bin below it, chamfer on chamfer, so stacks centre themselves.

What fits in the tool block?

Six 1/4-inch hex bits, three 9.5 mm round shafts and two 13.5 mm handles.

Can I get other sizes or colours?

Yes. Everything is printed to order, so other bin sizes, heights and colours can be quoted. PETG suits a workshop and PLA is fine for a desk.

Are magnets included?

No. This version has no magnet holes and nothing else to fit.
