1/24 micro-crawler parts: LED bumper, low-CG battery tray and magnetic body mounts (fits Axial SCX24)

Three small upgrades for 1/24 micro-crawlers. The stubby bumper slides its two tongues into the stock front bumper-mount slots and carries two reflector buckets for standard 3 mm LEDs plus a recovery slot for a strap hook. The battery tray sits between the frame rails, flush with the rail tops, so a 2S 350 mAh pack hangs 6 mm lower than on a deck tray. The magnetic body mounts replace the body posts with pinned bars holding 6 x 3 mm disc magnets, with matching cups glued under the shell, so the body goes on and off without clips. Fits the Axial SCX24; because the maker publishes no chassis drawings, every chassis interface comes with a free three-step fit coupon. Printed to order in PETG in our Melbourne workshop.

From A$8Made to order Studio renders, real photos coming

From A$8 for the full kit (bumper, tray, magnet mounts). Printed to order in Melbourne and shipped Australia-wide; we confirm the final price and lead time before anything is printed.

Get a quote → Email us about this part

On the quote page choose Request a quote (no file needed) and name this part and the option you want.

Black 3D printed micro-crawler parts: a slotted battery tray, a stubby front bumper with two round LED buckets, two pinned magnet bars and four small magnet cups — Studio render: made to order, real photos coming: battery tray, LED bumper, two magnet body-mount bars and four body cups, in black PETG.

Order status. Order minimum applies: the whole kit prints for under the A$8 minimum, so one kit or several ship for the same minimum plus postage. The chassis interfaces are measured from public parts, not a maker drawing: the free coupons check the three pitches, the tray width and the pin size on your truck before the final print.

What does it look like in use?

Renders are computer images of our own design, made from the same model we print. This family is made to order: real photos of our first prints are coming.

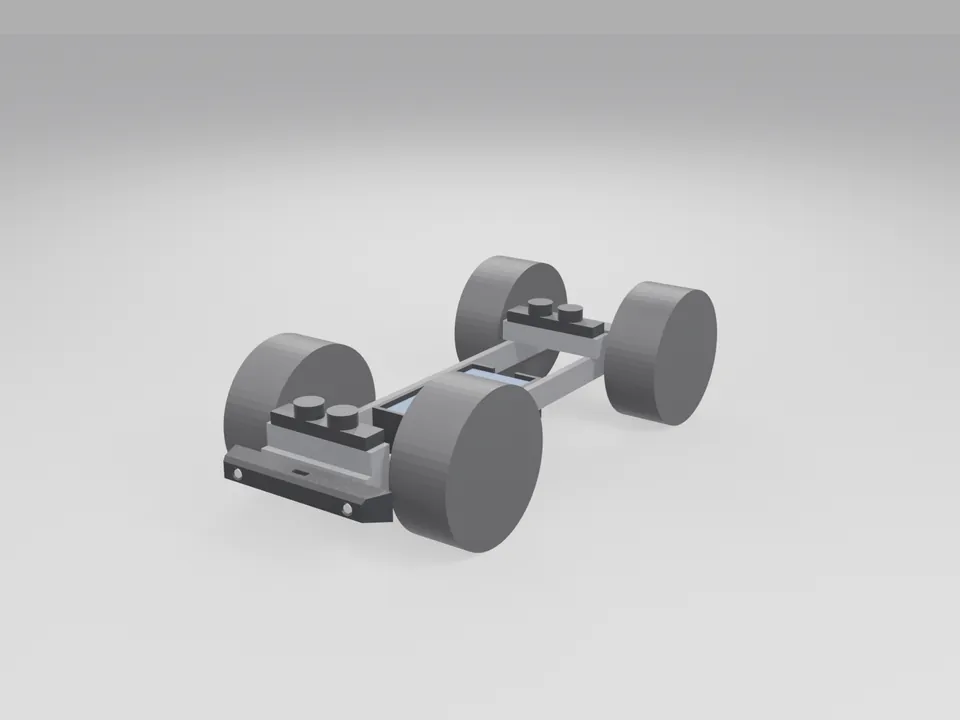

A plain grey stand-in crawler chassis with four wheels showing the black bumper at the front, the tray between the rails and the magnet bars on the body posts — **In use (render)**Render: the parts on a generic stand-in chassis. The chassis, wheels and body are plain stand-ins, not products.

Specifications: material, size and what it fits

Spec	Detail
Material	PETG, 0.24 mm layers on a 0.6 mm nozzle, 3 walls, no supports. Bumper 30 % infill (it takes rock strikes); tray, bars and cups 5 %
LED bumper	66 x 10 x 10 mm, 14-degree approach slope, 45-degree top chamfer, two rear tongues 4.6 x 2.4 mm at 32.2 mm pitch with 1.0 mm pilot holes for the stock M2 screws, two reflector buckets for 3 mm (T-1) LEDs that stop on their flange, 6 x 2.5 mm centre recovery slot. About 5 g
Low-CG battery tray	32.6 x 60.2 x 16 mm, sits between the rails flush with their tops, 29.4 x 57 mm pocket for 56 x 28 x 13 mm 2S 350 mAh packs, three M2 pilot holes per side at 18 mm pitch, four slots for a 10 mm hook-and-loop strap, lead notch. About 7 g
Magnetic body mounts	Two bars (print 2) with 2.6 mm pins at 32 mm pitch that drop into the stock post holders and two pockets each for 6 x 3 mm disc magnets; four cups (print 4) that hold the matching magnets under the body shell. About 5 g the set
Fits	Axial SCX24 chassis (C10, Wrangler, Gladiator, Bronco, Deadbolt bodies). The bumper mount pitch differs between SCX24 versions (30-33.5 mm seen in the field), so the bumper coupon has three pitches
Hardware	Not included: stock M2 screws, two 3 mm LEDs and wiring, eight 6 x 3 mm disc magnets, CA glue, 10 mm strap
Fit coupons	Free with an order: bumper tongue pitch 30.0 / 32.2 / 33.5 mm (each with 3.0 / 3.1 / 3.2 mm LED test bores), tray width 32.2 / 32.6 / 33.0 mm, magnet-bar pin 2.5 / 2.6 / 2.7 mm. Pick the step that fits and we print the final parts to it

Axial and SCX24 are trademarks of Horizon Hobby, LLC. These are independent accessories, not affiliated with or endorsed by Axial or Horizon Hobby.

How much does it cost?

Guide prices for printed parts, in Australian dollars. Shipping is extra; we confirm the final price, including any business minimum, before printing. Bulk and custom sizes are quoted per job.

Option	From
LED bumper	A$8
Low-CG battery tray	A$8
Magnetic body mount set (2 bars + 4 cups)	A$8
Full kit: bumper + tray + magnet mounts	A$8
Fit coupons (9 pieces)	Free with an order

Who it's for

SCX24 owners and micro-crawler clubs who want a lower pack, working headlights and a clip-free body, and hobby shops after a local printed-parts source.

Get a quote →Bulk or custom enquiry

Safety & use

Installation & use. Designed for the uses described on this page only. Fixings are not included: use the sizes listed, check they are tight before use, and check the parts regularly for wear or damage. Not for safety-critical or overhead load-bearing use. Damage caused by misuse, modification or overloading isn't a fault in the product.

Hobby part, not a toy. Not for children under 14: small parts, and loose magnets if fitted. Keep loose magnets away from children and pets; if swallowed, get medical help at once. Do not over-tighten screws into printed plastic.

Batteries. Follow the pack maker's charging and storage rules. Never let the strap or tray crush, bend or puncture a LiPo pack, and stop using any pack that is swollen or damaged.

This doesn't affect your rights under the Australian Consumer Law.

FAQ

Common questions

Will the bumper fit my SCX24?

The tongues are 4.6 x 2.4 mm at 32.2 mm pitch, the median of the public SCX24 bumpers we measured, but the pitch varies between versions (30 to 33.5 mm). That is why the free coupon set has three pitches: drop each into the stock mount, see which lines up with the screw holes, and we print your bumper at that pitch.

Which battery packs fit the tray?

Standard 2S 350 mAh packs of about 56 x 28 x 13 mm. The pocket is 29.4 x 57 mm with a lead notch in the rear wall and four slots for a 10 mm hook-and-loop strap. The tray sits flush with the rail tops so the pack hangs 6 mm lower than a deck tray.

How do the magnetic body mounts work?

Each bar has two 2.6 mm pins at 32 mm pitch that drop into the stock body-post holders, and two pockets for 6 x 3 mm disc magnets. The four cups hold the matching magnets and are glued under the body shell. Eight magnets and CA glue are not included. The pin coupon lets you pick a snug pin size before the final print.

Which LEDs fit the bumper?

Standard 3 mm (T-1) LEDs. They go in from the back and stop on their flange; the coupon has 3.0 / 3.1 / 3.2 mm test bores so you can check your LEDs. Wiring and resistors are your own.

Why is everything A$8?

Each part is a few grams of PETG and prints in minutes, so the instant-quote price lands on our A$8 order minimum. One kit or a few kits in one order all share that minimum; we quote bulk and club orders per job.

How do I order?

Use Get a quote and choose Request a quote, naming the parts or the kit, the colour and the quantity. We confirm the price and lead time before anything is printed.
