Tilting depth-camera mount for 2020 extrusion (fits RealSense D435 / D435i and D455 rear mounting points)

A two-part PETG mount that holds a depth camera on 20-series aluminium extrusion at any angle from about 30 degrees down to 60 degrees up. The base bolts to a 2020 slot with two M5 T-nut screws; the camera bracket screws to the camera's two rear mounting points and pivots on one M5 bolt between the base's lugs, and a nyloc nut holds the angle. Two brackets: 2 x M3 at 45 mm for the RealSense D435 / D435i and 2 x M4 at 95 mm for the D455, from the maker's published datasheet drawings. For ROS mobile robots, eye-to-hand arm cells and lab rigs. Printed to order in our Melbourne workshop.

From A$8Made to order Studio renders, real photos coming

From A$8 for the base + one camera bracket. Printed to order in Melbourne and shipped Australia-wide; we confirm the final price and lead time before anything is printed.

Get a quote → Email us about this part

On the quote page choose Request a quote (no file needed) and name this part and the option you want.

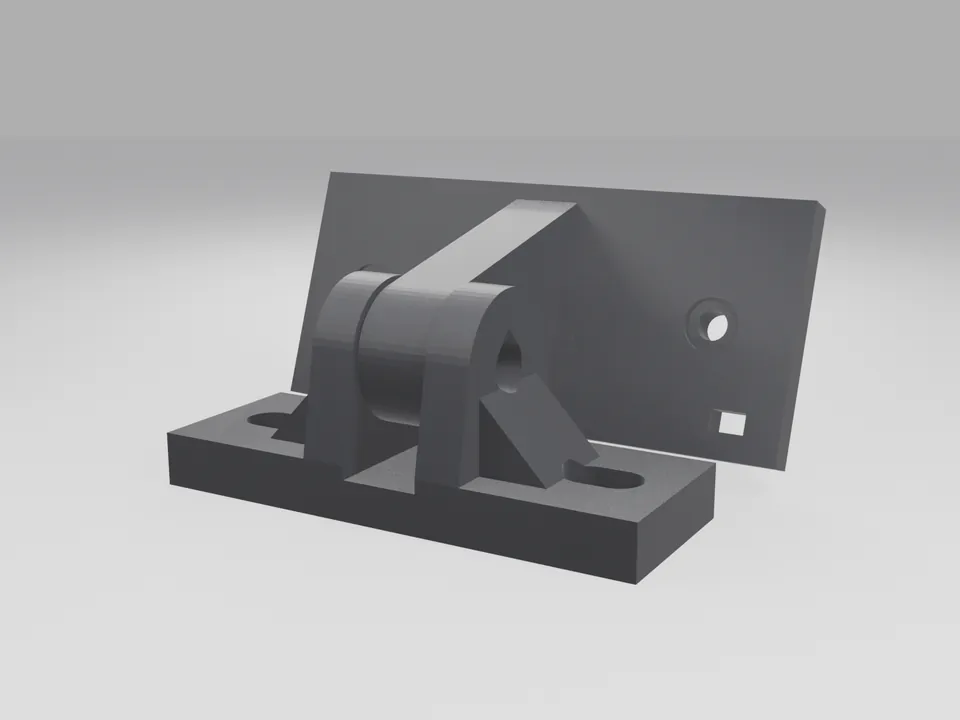

Black 3D printed tilt mount: a slotted base with two pivot lugs and gussets, holding a flat camera bracket plate on an M5 pivot — Studio render: made to order, real photos coming: the base with the 45 mm bracket, in black PETG.

Order status. Every camera dimension comes from the maker's published D400 datasheet, and the tilt joint is a plain clamped bolt joint, so there is no fit coupon. Use the listed screw lengths: longer screws can damage the camera.

What does it look like in use?

Renders are computer images of our own design, made from the same model we print. This family is made to order: real photos of our first prints are coming.

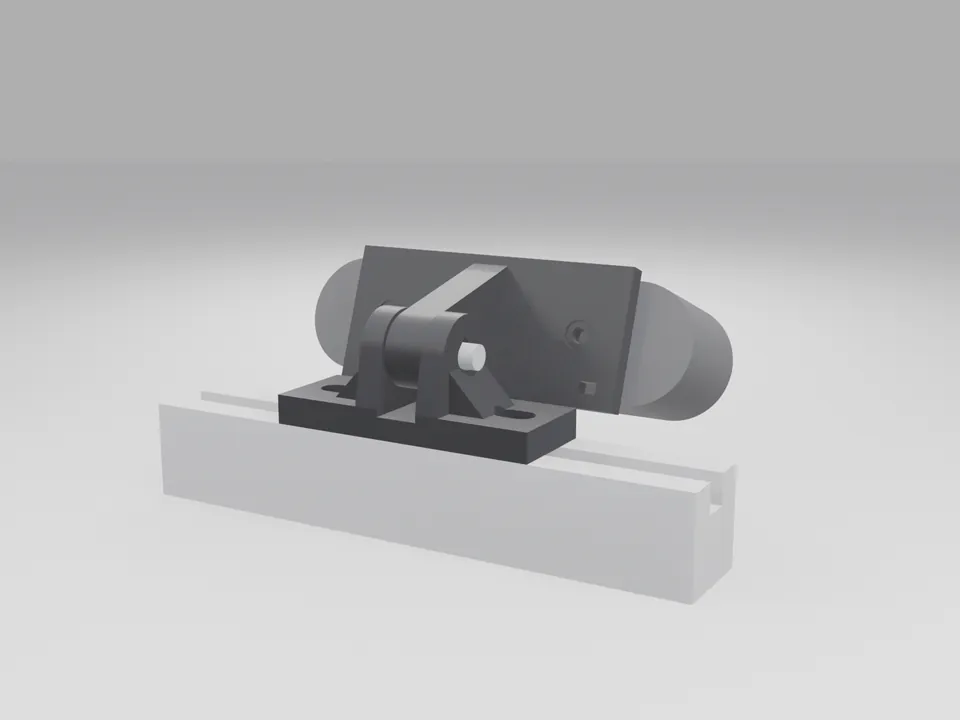

A plain grey bar-shaped camera stand-in on the black tilt mount, which is bolted to a short white 2020 extrusion stub — **In use (render)**Render: a plain camera-sized stand-in on a 2020 stub. The camera and bar are stand-ins, not products.

Specifications: material, size and what it fits

Spec	Detail
Material	PETG, 0.24 mm layers on a 0.6 mm nozzle, 3 walls, no supports (pivot holes are teardrops). For robots that bump into things we print 4 walls / 25 % infill. Hot rooms or long runs: PETG-CF or ASA on request
Base	56 x 20 x 24 mm: 2 x M5 slots 40 mm apart (+-1.5 mm) for T-nuts in a 2020 slot, two pivot lugs with 45-degree gussets. About 8 g
45 mm bracket	64 x 31 x 31.5 mm, 2 x M3 clearance holes 45 mm apart with counterbores leaving 3.5 mm of plate under the head (M3 x 6 reaches 2.5 mm into the camera; its limit is 3 mm). Tilt -31 to +60 degrees. About 9.3 g
95 mm bracket	110 x 33 x 31.5 mm, 2 x M4 clearance holes 95 mm apart leaving 4.5 mm under the head (M4 x 8 reaches 3.5 mm; limit 4 mm). Tilt -25 to +60 degrees. About 15.3 g
Fits	RealSense D435 / D435i (2 x M3 at 45 mm, max insertion 3 mm) and D455 (2 x M4 at 95 mm, max insertion 4 mm) rear mounting points, from the RealSense D400 Series datasheet (Oct 2025), on 2020 / 2040 extrusion
Hardware	Not included: 2 x M5 x 10 + 2020 T-nuts, 1 x M5 x 25 + nyloc nut + 2 washers for the pivot, 2 x M3 x 6 (D435) or 2 x M4 x 8 (D455). Do not use longer camera screws

RealSense is a trademark of its owner, named only to describe the mounting points this bracket fits. This mount is our own design and is not affiliated with or endorsed by the camera maker.

How much does it cost?

Guide prices for printed parts, in Australian dollars. Shipping is extra; we confirm the final price, including any business minimum, before printing. Bulk and custom sizes are quoted per job.

Option	From
Base + 45 mm bracket (D435 / D435i), PETG	A$8
Base + 95 mm bracket (D455), PETG	A$8
Base + both brackets	A$8
4 walls / 25 % infill for rough use	Quoted, usually no extra charge
PETG-CF or ASA	Quoted on request

Who it's for

ROS 2 mobile-robot builders, arm cells with an eye-to-hand camera, university labs and integrators who mount depth cameras on 2020 extrusion.

Get a quote →Bulk or custom enquiry

Safety & use

Installation & use. Designed for the uses described on this page only. Fixings are not included: use the sizes listed, check they are tight before use, and check the parts regularly for wear or damage. Not for safety-critical or overhead load-bearing use. Damage caused by misuse, modification or overloading isn't a fault in the product.

Robots. Powered joints can pinch and move unexpectedly. Keep fingers, hair and cables clear while powered, check the full range of motion by hand after fitting, and use the screw lengths listed on this page. PETG softens near 70 degrees C. A printed bracket is for hobby, education, research and prototype loads.

Camera. Use M3 x 6 (D435) or M4 x 8 (D455) screws only: longer ones go past the camera's maximum insertion depth. The camera's back is a heat path; for hot rooms or long runs ask for PETG-CF or ASA, and check the pivot nut is tight before driving the robot.

This doesn't affect your rights under the Australian Consumer Law.

FAQ

Common questions

Which depth cameras does it fit?

The RealSense D435 and D435i (2 x M3 rear mounting points 45 mm apart) with the 45 mm bracket, and the D455 (2 x M4, 95 mm apart) with the 95 mm bracket. Both sets of numbers are from the maker's D400 datasheet. Other cameras with two rear holes can be done from their drawing.

How far does it tilt?

From about 30 degrees down to 60 degrees up: -31 to +60 degrees with the 45 mm bracket and -25 to +60 with the 95 mm bracket, checked in 1-degree steps in the model. Loosen the M5 pivot nut, set the angle and tighten it.

How does it mount to the robot?

Two M5 slots 40 mm apart on the base take M5 x 10 screws into T-nuts in a 2020 or 2040 slot. Screws and T-nuts are not included.

Which screws go into the camera?

M3 x 6 for the D435 / D435i and M4 x 8 for the D455. The counterbores are sized so those screws stop short of the camera's maximum insertion depth (3 mm and 4 mm). Do not use longer screws.

How do I order?

Use Get a quote and choose Request a quote, naming the bracket (45 mm or 95 mm or both) and quantity. We confirm the price and lead time before anything is printed.
