Formada3D TPU FPV soft-mount set: motor bumpers, SMA antenna mount and VTX / RX tray (not frame-specific)
A generic TPU 95A set for 5 to 7 inch FPV quads that fits by bolt pattern instead of by frame. Four motor bumpers sit between each motor and arm and take 12 x 12 (M2), 16 x 16 (M3) and 19 x 19 mm (M3) motor patterns, with a raised rim that takes the hit on crashes and landings. The antenna mount bolts to the two rear stack bolts (20, 25.5 or 30.5 mm patterns) and holds the video antenna's SMA bulkhead up and back at 44 degrees. The tray sits on a 30.5 x 30.5 mm M3 stack and carries a 20 x 20 mm M2 VTX, a receiver wing with zip-tie slots and two masts for the receiver antenna tubes. Printed to order in our Melbourne workshop.
From A$8 for the 4 motor bumpers. Printed to order in Melbourne and shipped Australia-wide; we confirm the final price and lead time before anything is printed.
On the quote page choose Request a quote (no file needed) and name this part and the option you want.
Order status. The bolt patterns come from published frame and motor specs. The SMA hole and the receiver antenna-tube bore have no published drawing, so the free fit coupon checks both before we print your set.

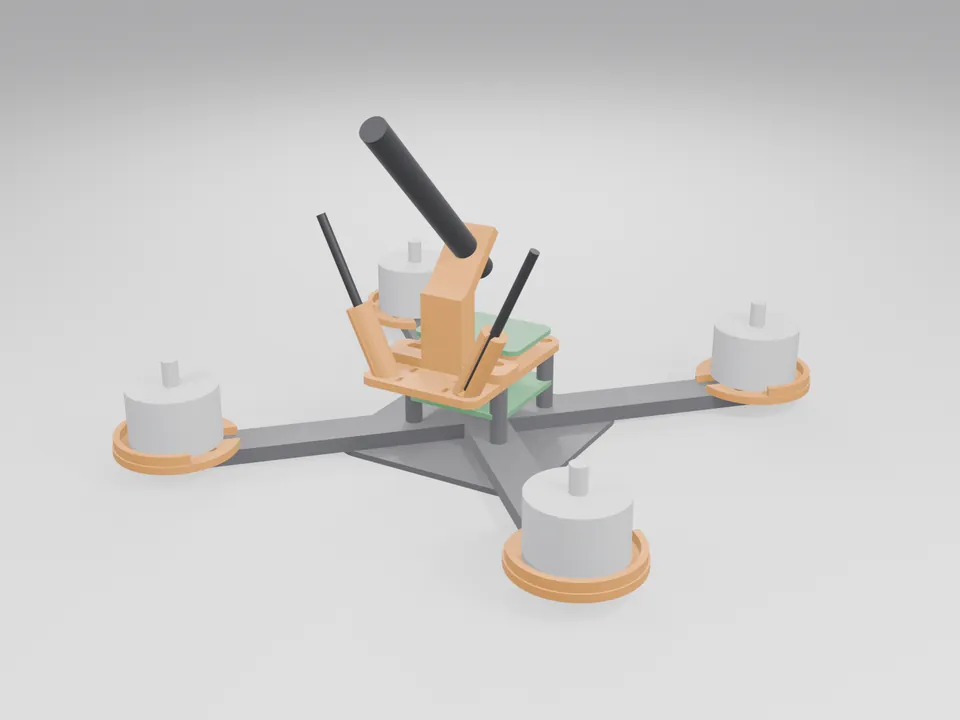

What does it look like in use?

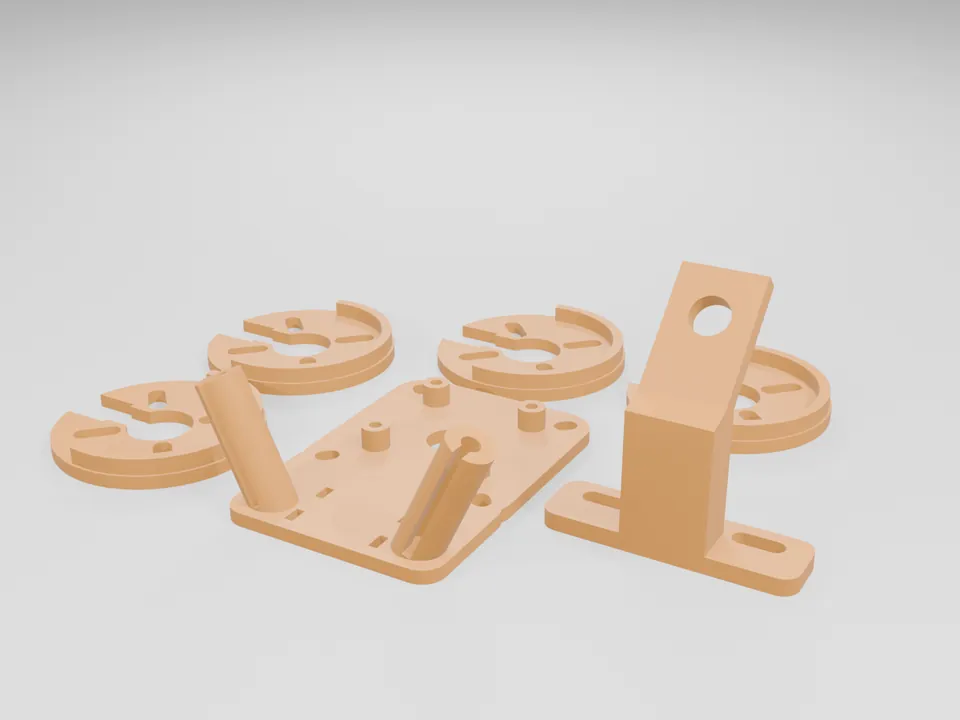

Renders are computer images of our own design, made from the same model we print. This family is made to order: real photos of our first prints are coming.
Specifications: material, size and what it fits
| Spec | Detail |
|---|---|
| Material | TPU 95A (orange or black), 0.20 mm layers, 3 walls, 30 % gyroid infill, no supports |
| Motor bumpers (x4) | 37.5 x 38 x 5.5 mm pad, 2.5 mm under the motor plus a 3 mm rim round the outboard half of the bell. Four curved slots for 12 x 12 (M2), 16 x 16 (M3) and 19 x 19 (M3) patterns, 12 mm centre hole, wire channel towards the arm. About 2.4 g each |
| SMA antenna mount | 42 x 22.2 x 41.3 mm: two-slot foot for the rear stack bolts (20, 25.5 or 30.5 mm patterns), riser and a panel leaning 44 degrees with a 6.6 mm hole for a standard SMA bulkhead (1/4-36 thread). About 3.6 g |
| VTX / RX tray | 53.8 x 58 x 24.1 mm: 40 x 40 plate for a 30.5 x 30.5 mm M3 stack, four posts for a 20 x 20 mm M2 VTX (self-tapping), RX wing with zip-tie slots, centre wire hole, two 25-degree masts that take receiver antenna tubes through a slit. About 7.2 g |
| Fits | Bolt patterns from frame and motor makers' published specs: 30.5 x 30.5 and 20 x 20 mm M3 stacks, 20 x 20 and 25.5 x 25.5 mm M2 VTX patterns, 12 x 12, 16 x 16 and 19 x 19 mm motor patterns |
| Hardware | Not included: motor screws 2.5 mm longer than stock (check they do not reach the windings), M2 screws for the VTX, stack bolts, SMA nut, zip ties |
| Fit coupon | Free with an order: SMA holes 6.4 / 6.6 / 6.8 mm, antenna-tube bores 2.8 / 3.2 / 3.6 mm and an M2 self-tap test. Pick the snug ones and we print your set to them |
Frame, motor, VTX and receiver brands are trademarks of their owners. This set is our own design, sold by bolt pattern, and not affiliated with or endorsed by any maker.
How much does it cost?
Guide prices for printed parts, in Australian dollars. Shipping is extra; we confirm the final price, including any business minimum, before printing. Bulk and custom sizes are quoted per job.
| Option | From |
|---|---|
| Motor bumpers, set of 4 | A$8 |
| SMA antenna mount | A$8 |
| VTX / RX tray | A$8 |
| Full set: 4 bumpers + antenna mount + tray | A$14.95 |
| Fit coupon | Free with an order |
Who it's for
FPV freestyle and long-range pilots building or repairing 5-7 inch quads, and FPV shops and clubs that want one soft-mount set for many frames.
Safety & use
Installation & use. Designed for the uses described on this page only. Fixings are not included: use the sizes listed, check they are tight before use, and check the parts regularly for wear or damage. Not for safety-critical or overhead load-bearing use. Damage caused by misuse, modification or overloading isn't a fault in the product.
Drones. Fit at your own risk and check every screw before each flight. TPU softens above about 60 degrees C. Keep the parts clear of propellers, and re-check the balance and centre of gravity after fitting. Not a certified aircraft part; the pilot stays responsible for the aircraft and for their CASA obligations.
Motor screws. The bumpers add 2.5 mm under each motor. Use motor screws 2.5 mm longer and check that they do not touch the motor windings before you power up.
This doesn't affect your rights under the Australian Consumer Law.
Common questions
Will it fit my quad?
It fits by bolt pattern, not by frame model: 12 x 12, 16 x 16 or 19 x 19 mm motor patterns, a 30.5 x 30.5 mm M3 stack for the tray, a 20 x 20 mm M2 VTX, and rear stack bolts at 20, 25.5 or 30.5 mm for the antenna mount. Check those numbers on your frame and parts.
What do the motor bumpers do?
Each bumper sits between the motor and the arm and has a 3 mm rim round the outboard half of the motor bell, so a crash or rough landing hits soft TPU first. They add 2.5 mm under the motor, so use screws 2.5 mm longer and check they do not reach the windings.
Which antennas fit?
The antenna mount takes a standard SMA bulkhead connector (1/4-36 thread) through a 6.6 mm hole; the tray's masts take receiver antenna tubes through a slit into a 3.2 mm bore. Tubes and connectors vary, so the free coupon has three sizes of each.
Can I buy the parts separately?
Yes: bumpers in a set of 4, the antenna mount or the tray on its own, or the full set. All are TPU 95A in orange or black.
How do I order?
Use Get a quote and choose Request a quote, naming the parts, quantity and colour. We confirm the price and lead time before anything is printed.
More from the parts catalogue
Spray-drone hose and cable clamps for 20-40 mm carbon arm tubes, plus skid guards
Split tube clamps with an 8 mm spray-hose clip and a 6 mm cable clip, TPU skid guards and a tube gauge card.

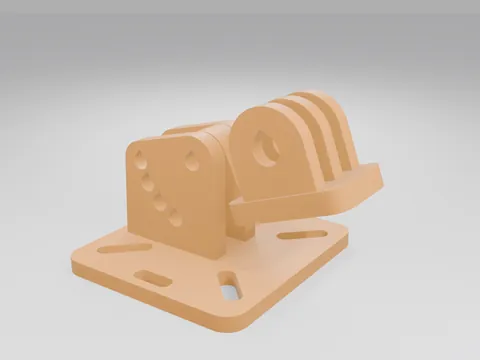

Adjustable FPV action-camera mount, 0-40 degree tilt, TPU (fits 20 x 20 to 30.5 x 30.5 mm M3 patterns)
