Outdoor LoRa mesh node case, board versions: fits Heltec V4, RAK19007 and LilyGO T-Beam (solar lid + pole bracket)

Three board versions of our outdoor LoRa mesh node case, for nodes running Meshtastic-compatible or MeshCore firmware. Each is a sealed-style ASA box with a flat lid on a face O-ring, an SMA bulkhead port for the antenna, a PG7 gland port for the solar or sensor cable, a lid frame that holds a small solar panel, and a V-block bracket for a 20-50 mm pole or a wall. The Heltec WiFi LoRa 32 (V4) version has a snap-in cradle and an 18650 holder bay; the RAK WisBlock Base RAK19007 version screws the board to four standoffs on its official hole positions, with the same holder bay; the LilyGO T-Beam version is a longer box with 22 mm standoffs so the board's own 18650 holder hangs underneath. Board positions come from the makers' published drawings. Printed to order in our Melbourne workshop.

From A$20.95Made to order Studio renders, real photos coming

From A$20.95 for the RAK19007 box + solar lid in ASA. Printed to order in Melbourne and shipped Australia-wide; we confirm the final price and lead time before anything is printed.

Get a quote → Email us about this part

On the quote page choose Request a quote (no file needed) and name this part and the option you want.

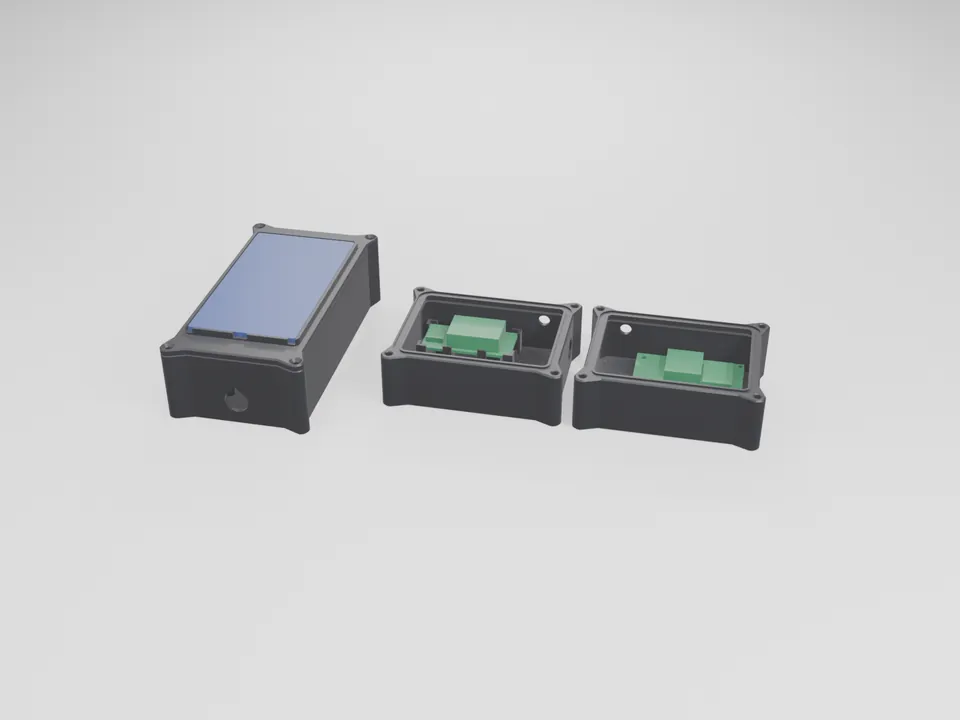

Three black 3D printed node cases: a long closed case with a blue solar panel in its lid frame, and two open boxes with plain green board stand-ins inside — Studio render: made to order, real photos coming: the T-Beam case with a panel in the lid frame (left), the Heltec V4 box with its snap-in cradle (centre) and the RAK19007 box on standoffs (right), in black ASA.

Order status. The RAK19007 and T-Beam versions screw to the boards' published hole positions. Heltec does not publish the V4's board thickness or the edge of its screen bracket, so a Heltec V4 order starts with a free 5 g cradle coupon: snap your board in, tell us if it clicks, and we print your case to suit.

What does it look like in use?

Renders are computer images of our own design, made from the same model we print. This family is made to order: real photos of our first prints are coming.

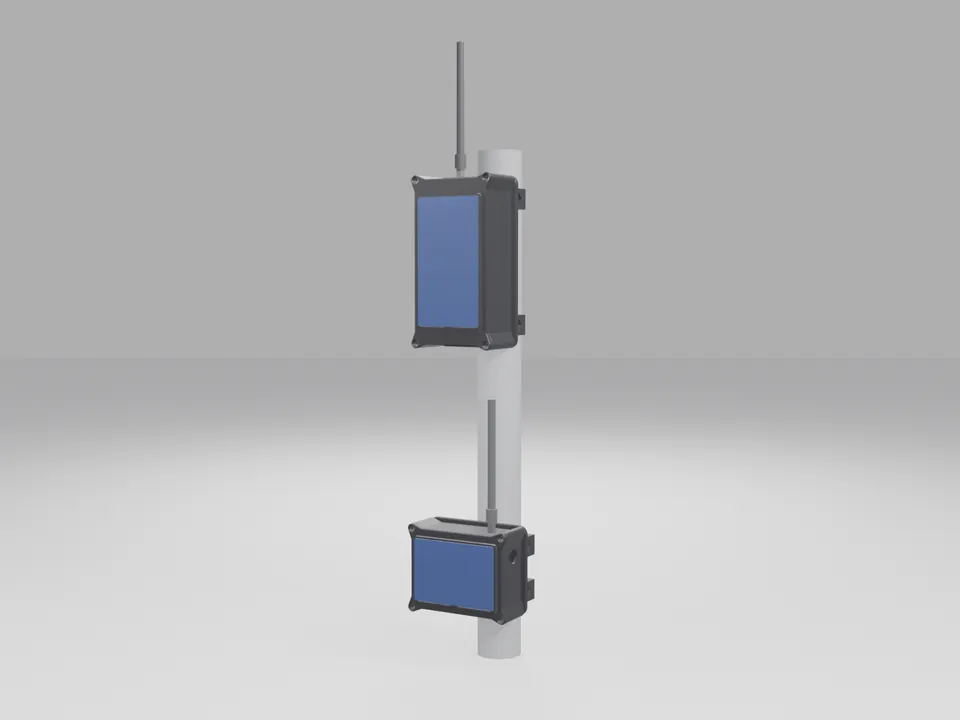

Two black node cases with blue solar panels on their lids clamped to a grey pole by black brackets, each with a grey antenna pointing up — **In use (render)**Render: the T-Beam case above and the Heltec V4 case below on one pole. Boards, panels, antennas and the pole are plain stand-ins, not products.

Specifications: material, size and what it fits

Spec	Detail
Material	ASA, black (UV-resistant), 0.20-0.30 mm layers, no supports. Boxes and lids 5 % infill with 3 walls (walls and insert lobes print solid); pole brackets 25 % infill with 4 walls because they carry the case on a pole
Heltec V4 version	Box 99.3 x 79.3 x 32.4 mm. Snap-in cradle for the 51.7 x 25.4 x 10.7 mm board (outline + 0.3 mm, four snap tabs), bay for a single 18650 holder up to 78 x 21.5 mm. About 49 g + 21 g lid
RAK19007 version	Box 99.3 x 79.3 x 32.4 mm. Four 6 mm standoffs with M2.5 self-tapping pilots on the board's four mounting holes at (4,4), (4,26), (56,4) and (58,28) mm; 18650 holder bay. About 47 g + 21 g lid
T-Beam version	Box 79.3 x 149.3 x 40.9 mm. Four 22 mm standoffs with M2 self-tapping pilots on the board's 27.71 x 95.10 mm hole pattern, leaving room for the board's own 18650 holder underneath. About 73 g + 32 g lid
Ports	SMA bulkhead (6.5 mm hole) placed so the antenna points up on a pole; PG7 cable gland port (13 mm teardrop hole). Ports are placed per board so no nut sits in front of the board
Solar lid	Raised frame for a small panel with 0.5 mm clearance, cable notch and drain gaps: up to 80 x 55 x 3 mm on the Heltec V4 / RAK lid, 60 x 110 x 3 mm on the T-Beam lid. Set to your panel on request
Mounting	V-block bracket for 20-50 mm poles with zip ties or hose clamps, or wall keyholes for screws with heads up to 8 mm. 100 x 80 x 23 mm (V4 / RAK) or 80 x 150 x 23 mm (T-Beam)
Seal	Face O-ring: AS568 -043 (V4 / RAK) or -048 (T-Beam). Designed for an O-ring face seal; IP rating not tested
Fits	Heltec WiFi LoRa 32 (V4) (51.7 x 25.4 x 10.7 mm, Heltec specification), RAK WisBlock Base RAK19007 (60 x 30 mm and hole positions from the RAK datasheet drawing), LilyGO T-Beam V1.x outline (100.13 x 32.89 mm and hole pattern from the LilyGO size drawing)
Hardware	Not included: 8 x M3 x 5.7 heat-set inserts, 4 x M3 x 10 + 4 x M3 x 12 countersunk screws, O-ring, PG7 gland, SMA bulkhead pigtail to suit your board, 4 x M2.5 x 5 (RAK) or 4 x M2 x 6 (T-Beam) self-tapping screws, 18650 holder (V4 / RAK). Board, cell, panel and antenna are your own
Good to know	No USB access with the lid on (program it with the lid off). Displays are not visible through the sealed lid. For the Heltec V3 see our original mesh node case

Heltec, RAK and WisBlock, LilyGO and T-Beam, Meshtastic and MeshCore are trademarks of their owners, named only to describe fit or use. These cases are our own design and are not affiliated with or endorsed by any of them.

How much does it cost?

Guide prices for printed parts, in Australian dollars. Shipping is extra; we confirm the final price, including any business minimum, before printing. Bulk and custom sizes are quoted per job.

Option	From
RAK19007: box + solar lid, ASA	A$20.95
RAK19007: 3-part set with pole bracket	A$38.95
Heltec V4: box + solar lid, ASA	A$22.95
Heltec V4: 3-part set with pole bracket	A$39.95
T-Beam: box + solar lid, ASA	A$31.95
T-Beam: 3-part set with pole bracket	A$49.95
Pole / wall bracket on its own	A$17.95 (V4 / RAK), A$18.95 (T-Beam)
Heltec V4 cradle fit coupon	Free with a V4 order

Who it's for

Community mesh groups and hobbyists running Meshtastic-compatible or MeshCore LoRa nodes on Heltec V4, RAK WisBlock or T-Beam boards, and off-grid, farm and telemetry makers who need a pole-mounted solar node.

Get a quote →Bulk or custom enquiry

Safety & use

Installation & use. Designed for the uses described on this page only. Fixings are not included: use the sizes listed, check they are tight before use, and check the parts regularly for wear or damage. Not for safety-critical or overhead load-bearing use. Damage caused by misuse, modification or overloading isn't a fault in the product.

Electronics. This is a plastic enclosure with no electrical function. Boards, batteries, panels, cables and antennas are your own: fit and use them to their makers' instructions. Lithium cells must be fitted, charged and protected to their maker's instructions.

Sealing. Designed for an O-ring face seal; not tested to an IP rating.

This doesn't affect your rights under the Australian Consumer Law.

FAQ

Common questions

Which boards do the cases fit?

Three versions: the Heltec WiFi LoRa 32 (V4) in a snap-in cradle, the RAK WisBlock Base RAK19007 on four standoffs at its official hole positions, and the LilyGO T-Beam (V1.x board outline) on four 22 mm standoffs. For the Heltec V3 see our original mesh node case; the V3 cradle does not fit the V4, which is 1.5 mm longer and has a screen bracket.

Does it come with the solar panel, battery or electronics?

No. The price is for the printed ASA parts only. Board, 18650 cell and holder, solar panel, antenna, O-ring, gland, SMA pigtail, inserts and screws are not included; the sizes are listed in the specifications.

What size solar panel fits the lid?

The Heltec V4 and RAK19007 lid takes a panel up to 80 x 55 x 3 mm, and the T-Beam lid up to 60 x 110 x 3 mm, with 0.5 mm clearance each side. Tell us your panel size and we set the frame to it. The panel cable goes in through the PG7 gland.

How does it mount on a pole?

The bracket screws to four inserts under the case. Two V-blocks sit on a 20-50 mm pole and take zip ties or hose clamps through their strap tunnels; the case hangs with the antenna port on top. Two keyholes let you screw the bracket to a wall instead.

Is it waterproof?

It is designed for an O-ring face seal, with the lid screws and bracket inserts outside the seal line and gland and bulkhead ports, but it has not been tested to an IP rating, so we do not claim one.

Why does the Heltec V4 version need a fit coupon?

Heltec publishes the V4's outline (51.7 x 25.4 x 10.7 mm) but not its board thickness or where the screen bracket meets the board edge, and the snap tabs grip that edge. The free 5 g coupon is just the cradle: snap your board in, and we adjust the tab height before printing your case.

How do I order?

Use Get a quote and choose Request a quote, naming the board version, box + lid or the 3-part set, and your panel size. We confirm the price and lead time before anything is printed.
