Formada3D RC crawler course tiles and gate markers, strap-on 1/18 roof rack and LED light bar (3 mm or 5 mm LEDs)
A small crawler trail you can build on a desk, garage floor or club table, plus two scale extras for the truck itself. The 150 mm course tiles come as flat grip, rock garden and ramp-and-ledge tiles. Every edge has one dovetail tab and one socket, so any tile joins any other in any rotation and lifts straight out again. Flat gate markers plug into sockets in each tile, or stand on their own round foot on the floor. The roof rack is a generic 58 x 74 mm basket for 1/18 bodies: it straps on through four side slots, so it needs no holes in the body. A light bar holds six 3 mm or four 5 mm LEDs and screws to the rack's front tab. Printed to order in PETG in our Melbourne workshop.
From A$8 for the gate set or roof rack with a light bar. Printed to order in Melbourne and shipped Australia-wide; we confirm the final price and lead time before anything is printed.
On the quote page choose Request a quote (no file needed) and name this part and the option you want.

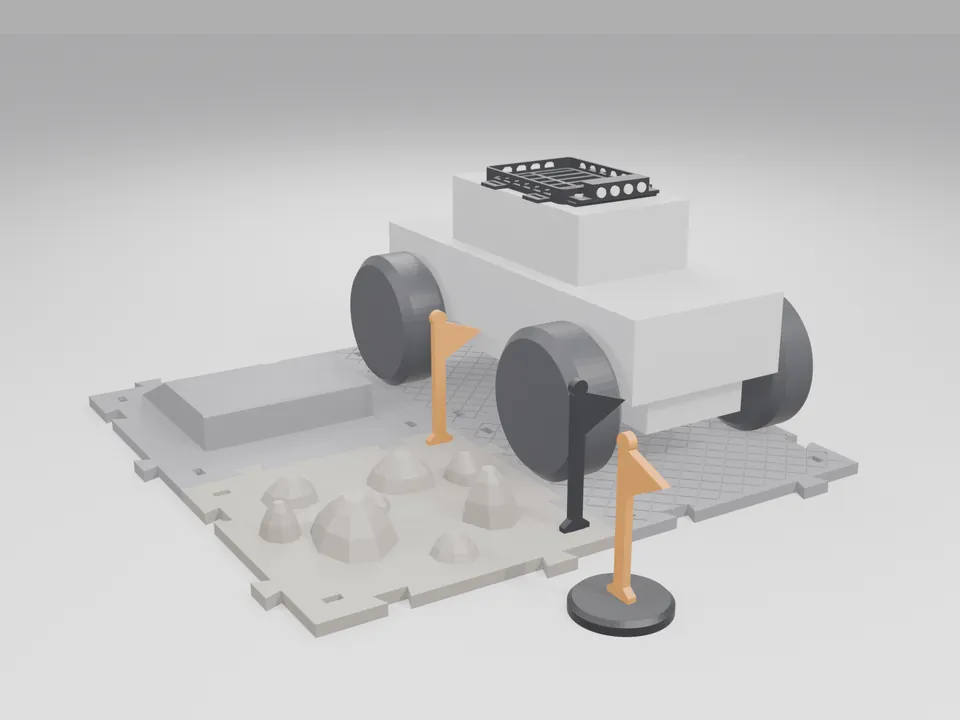

What does it look like in use?

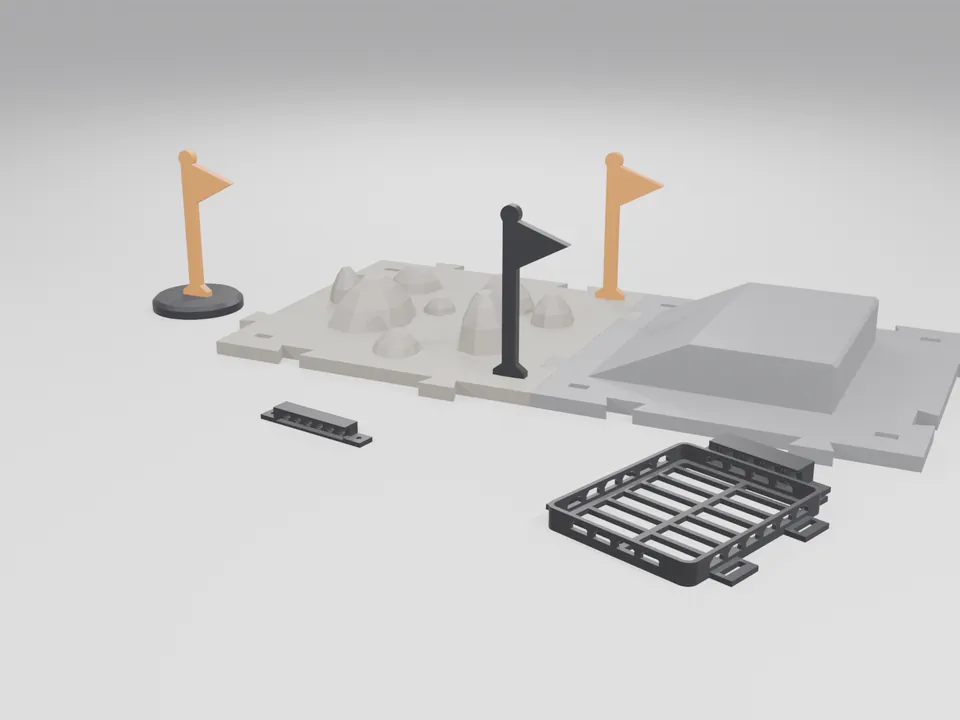

Renders are computer images of our own design, made from the same model we print. This family is made to order: real photos of our first prints are coming.
Specifications: material, size and what it fits
| Spec | Detail |
|---|---|
| Material | PETG, 0.20-0.24 mm layers, 3 walls, 5 % infill, no supports. PLA is fine for indoor tiles and markers |
| Course tiles | 150 mm square on a 150 mm grid, 6 mm base. Flat tile with a crosshatch grip texture; rock-garden tile with eight boulders 7-24 mm tall; ramp-and-ledge tile with a 25 degree ramp up to a 20 mm ledge, 96 mm wide |
| Tile joints | One dovetail tab and one socket on every edge, 0.2 mm clearance per side: any tile joins any tile in any rotation, and lifts straight out |
| Gate markers | Flat 4 mm pennant marker, 76 mm tall, with a peg that plugs into the four gate sockets in each tile or into a 44 mm round foot. Print two colours for the left and right of a gate |
| Roof rack | 58 x 74 mm basket, 8 mm windowed rail, slatted floor. Four side tabs with 10.4 x 2.6 mm slots for a 10 mm hook-and-loop strap or elastic band. Suits 1/18 bodies with a flattish roof of at least about 60 x 75 mm. No body-specific mounts |
| Light bars | 36 mm bar (50 mm with its wings) for six 3 mm (T-1) LEDs or four 5 mm (T-1 3/4) LEDs, sized from the Kingbright WP710A10 and WP7113 datasheets. LEDs go in from the back and stop on their flange; the leads run in an open channel on the back |
| Hardware | Not included: LEDs, resistors, wiring, battery or light controller, two M2 x 4 self-tapping screws for the bar, 10 mm hook-and-loop strap or elastic bands, foam tape |
| Weight | Tiles about 90-100 g each and 1.5 hours of printing; rack 8 g; light bars 2-3 g; marker 3 g; foot 6 g |
This set is our own design. It is not made for, affiliated with or endorsed by any RC vehicle or body maker, and it does not copy any licensed body shape or grille.
How much does it cost?
Guide prices for printed parts, in Australian dollars. Shipping is extra; we confirm the final price, including any business minimum, before printing. Bulk and custom sizes are quoted per job.
| Option | From |
|---|---|
| Flat grip tile, 150 mm | A$11.95 |
| Rock-garden tile, 150 mm | A$12.95 |
| Ramp-and-ledge tile, 150 mm | A$13.95 |
| Gate set: 2 markers + 2 feet | A$8 |
| Roof rack + one light bar (3 mm or 5 mm LEDs) | A$8 |
| Course starter: 2 flat, 1 rock and 1 ramp tile, 4 markers, 2 feet | A$54.95 |
| Colours | No extra charge |
Who it's for
Micro and 1/18 scale crawler owners who want a trail at home, RC clubs and hobby shops running small indoor comps, and scale builders who want a roof rack and lights without buying body-specific parts.
Safety & use
Installation & use. Designed for the uses described on this page only. Fixings are not included: use the sizes listed, check they are tight before use, and check the parts regularly for wear or damage. Not for safety-critical or overhead load-bearing use. Damage caused by misuse, modification or overloading isn't a fault in the product.
Lights. The light bars are holders only: they have no electrical function. LEDs, resistors, wiring and the battery or light controller are yours to choose and fit; use the resistor or driver your LED and battery need, and keep wiring clear of moving parts. PETG softens near 70 degrees C, so keep hot LEDs and resistors off the plastic.
Small parts. Gate markers, light bars and tile pieces are small and can break into smaller pieces. Not a toy for children under 3, and keep RC models and their batteries out of reach of young children.
This doesn't affect your rights under the Australian Consumer Law.
Common questions
Which crawlers is the course for?
The tiles are sized for 1/24 and 1/18 scale crawlers. Four tiles make a short trail, and more tiles make a longer loop. The rocks are 7 to 24 mm tall and the ledge is 20 mm. Mix flat, rock and ramp tiles to set how hard the line is.
How do the tiles lock together?
Every edge has one dovetail tab and one dovetail socket, placed so that any edge meets any other edge. You can turn a tile any way round and it still joins its neighbours. Drop it in from above and lift it straight out to change the layout. There is a 0.2 mm clearance per side, so they go together by hand.
How do the gate markers work?
Each tile has four slots near its corners. A flat 76 mm flag marker plugs into any slot, and a collar stops it on the surface. For the floor between tiles, the marker plugs into a 44 mm round foot instead. Order markers in two colours to mark the left and right of each gate.
Will the roof rack fit my truck?
It is a generic 58 x 74 mm rack for 1/18 bodies with a flattish roof of at least about 60 x 75 mm. It has no body-specific mounts: a 10 mm hook-and-loop strap or an elastic band runs through four side slots, and thin foam tape under the flat floor helps on a curved roof. Straps and tape are not included.
Which LEDs fit the light bar?
Standard 3 mm (T-1) or 5 mm (T-1 3/4) through-hole LEDs with a rim, sized from the Kingbright datasheets. The 3 mm bar takes six LEDs and the 5 mm bar takes four. LEDs go in from the back and stop on their rim, and a drop of glue holds them. LEDs, resistors and wiring are not included.
How do I order?
Use Get a quote and choose Request a quote, naming the tiles, gate set or rack and light bar, the quantity and the colours. We confirm the price and lead time before anything is printed.
More from the parts catalogue
Tyre cradle stand, charge-port plug and rail corner guards for self-balancing boards (fits Onewheel GT)
Floor cradle stand for 11.5-12 in board tyres, a TPU 3-pin charge-port plug and four tape-on rail corner guards.

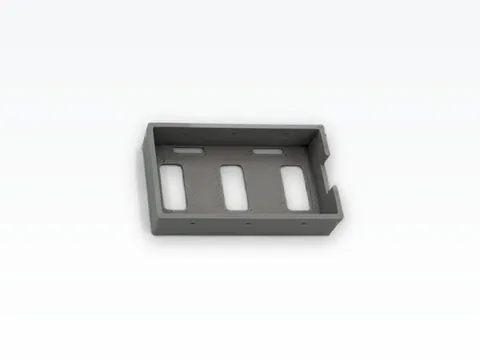

1/24 micro-crawler parts: LED bumper, low-CG battery tray and magnetic body mounts (fits Axial SCX24)
